Cuplock Intermediate Transom – Mid-Bay Support for Scaffolding Platforms | UAE

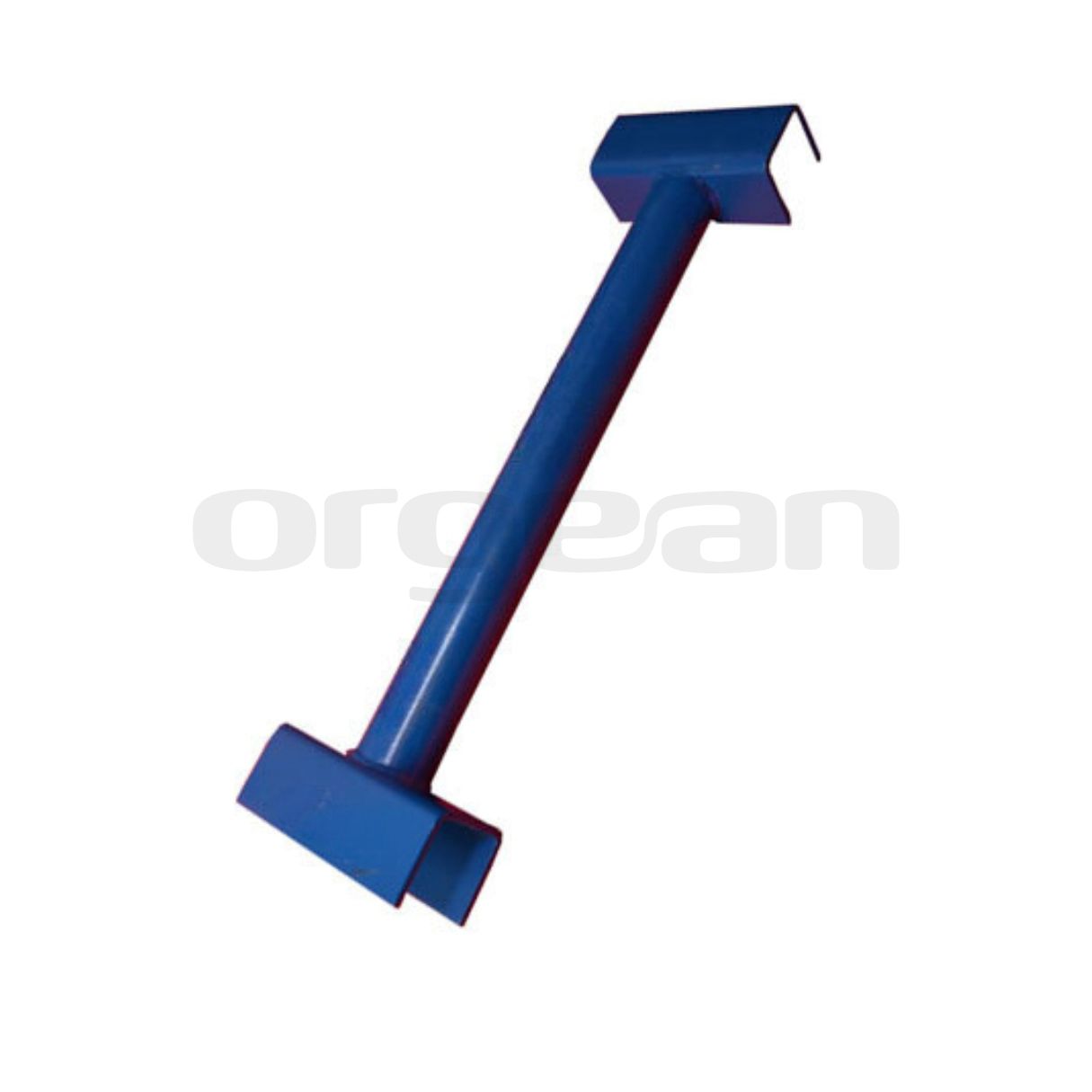

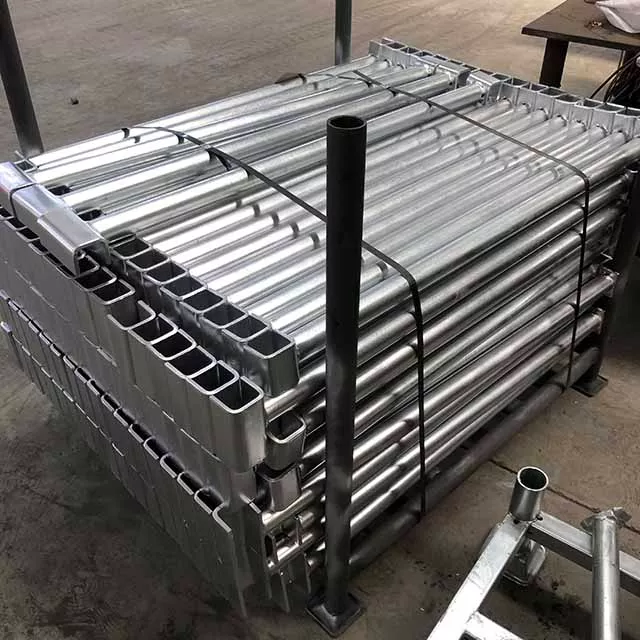

Cuplock Intermediate Transoms are integral components of the Cuplock scaffolding system, designed to offer mid-bay support for scaffold boards between the inner and outer ledgers. Constructed from high-strength steel tubes with a diameter of 48.3mm and a thickness of 3.2mm, these transoms ensure robust performance and longevity.

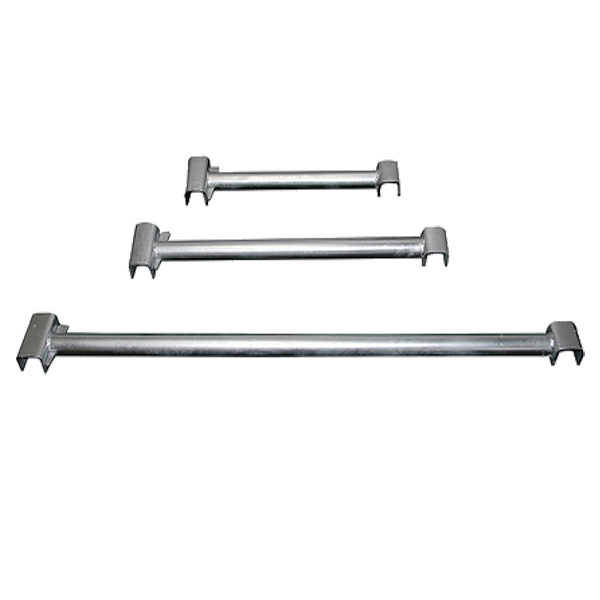

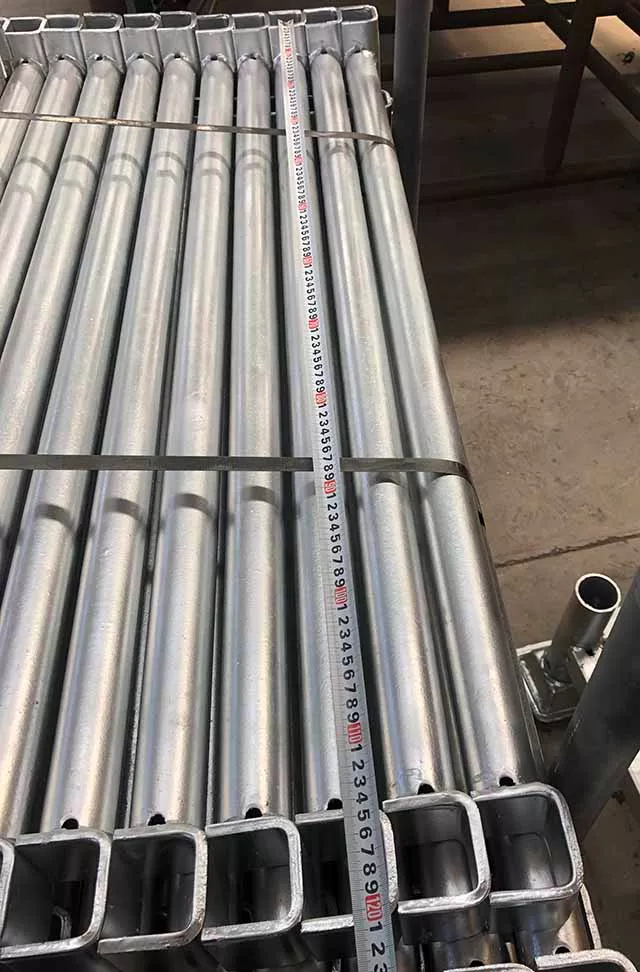

Available in various lengths, including 0.6m, 0.9m, 1.0m, 1.2m, 1.3m, 1.5m, 1.6m, 1.8m, and 2.5m, Cuplock Intermediate Transoms cater to diverse scaffolding requirements. The transoms feature a secure locking mechanism at one end to prevent dislocation, ensuring a stable and safe working platform.
Surface treatments such as hot-dip galvanization or painting provide excellent corrosion resistance, extending the service life of the transoms even in challenging environments.
Key Features:
- ✅ High Strength: Manufactured from 48.3mm OD x 3.2mm thick steel tubes for enhanced durability.
- ✅ Corrosion Resistant: Available in hot-dip galvanized or painted finishes to withstand harsh conditions.
- ✅ Versatile Lengths: Offered in multiple lengths to suit various scaffolding configurations.
- ✅ Secure Locking Mechanism: Integrated locking device prevents dislocation, ensuring safety.
- ✅ Compatibility: Designed to seamlessly integrate with standard Cuplock scaffolding systems.
Applications:
- Providing mid-bay support for scaffold boards in Cuplock scaffolding systems.
- Enhancing stability and safety in construction platforms.
- Suitable for use in birdcage structures and other specialized scaffolding setups.
