Description
Double Section Straight Fiberglass Ladder
Non-Conductive, Fire-Resistant Ladder for Safe Vertical Access
The Double Section Straight Fiberglass Ladder (FRPDSL Series) by Orgean is engineered for professionals who require maximum electrical safety, strength, and weather resistance. Made from Fiberglass Reinforced Plastic (FRP), this ladder is the ideal solution for electrical, industrial, and utility work, ensuring safety in environments where metal ladders pose a risk.
Why Choose Double Section Straight Fiberglass Ladder?
FRP (Fiberglass Reinforced Plastic) ladders offer significant advantages over traditional aluminium or steel ladders:
- Non-conductive – Safe for electrical work; does not conduct electricity
- Fire-retardant – Ideal for use in hot work areas and near flammable environments
- Corrosion & weather resistant – Performs well in coastal, humid, or chemically exposed sites
- High strength-to-weight ratio – Strong but lightweight, easy to transport and handle
- Maintenance-free – No rusting, no painting, and no deterioration over time
- Long service life – Excellent fatigue resistance for long-term industrial use
Product Features – FRPDSL Series

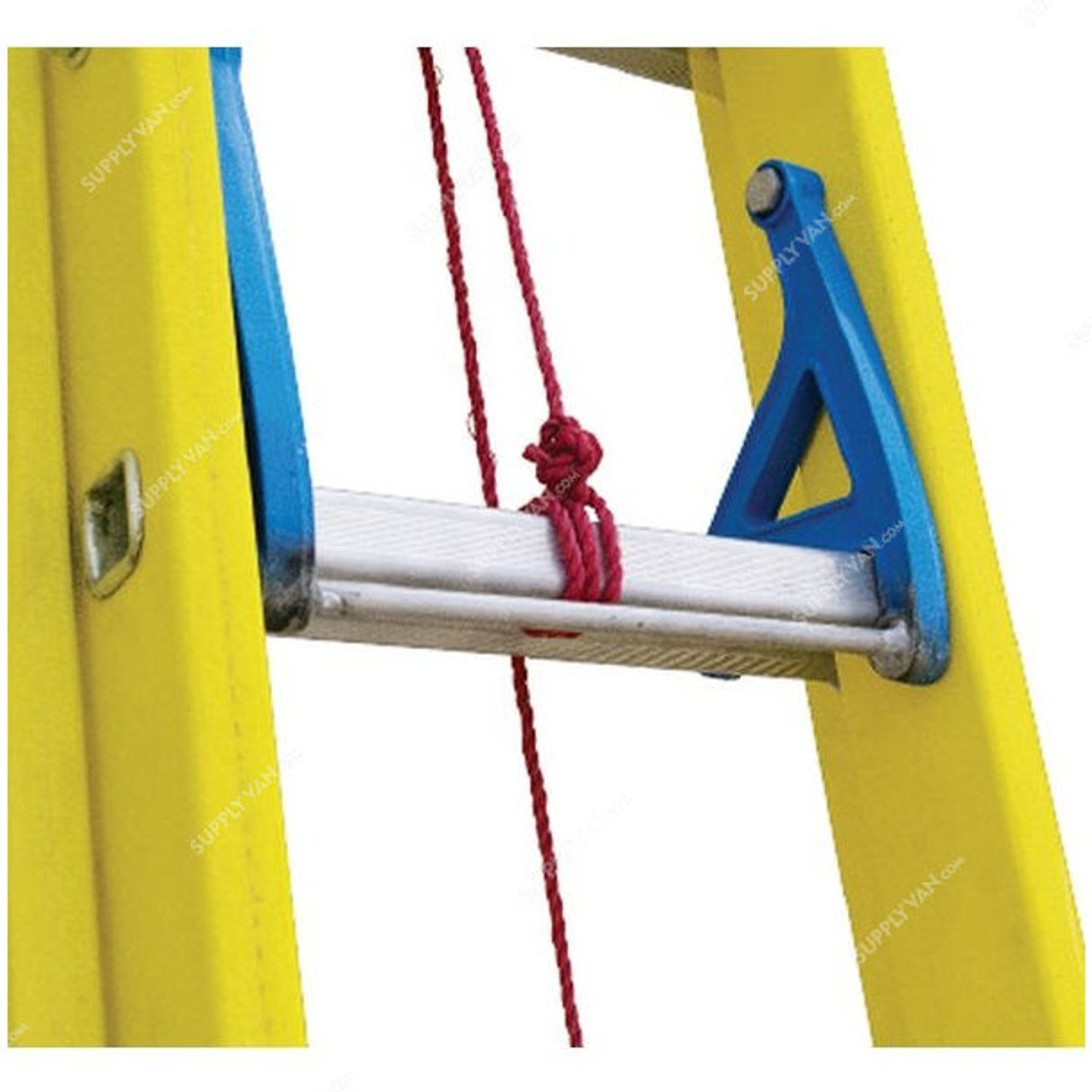

- Double-section straight ladder with overlap locking
- Heavy-duty extruded rungs – double crimped for strength
- Wide, square anti-slip steps for safe footing
- Anti-slip rubber shoes – stable on all surfaces

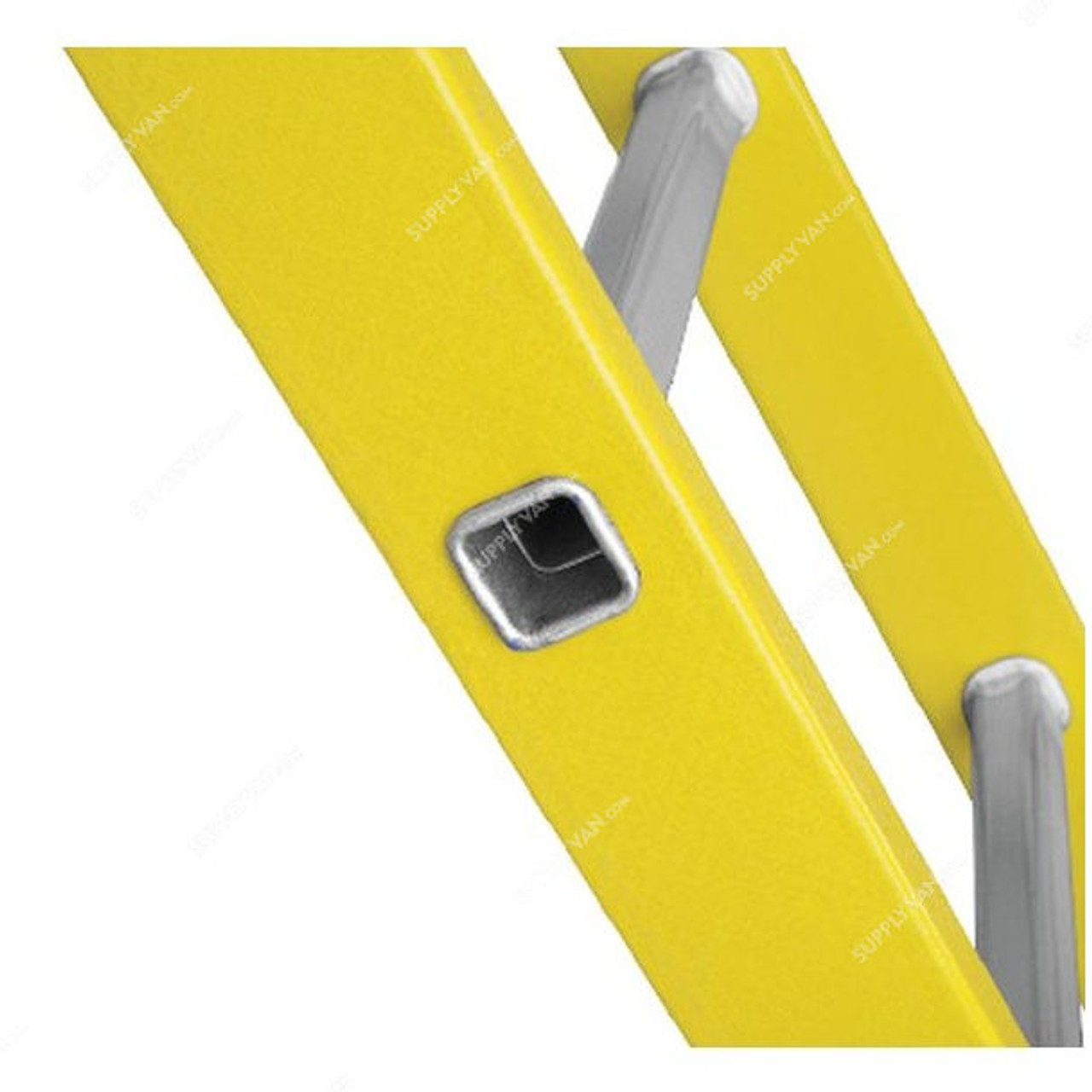

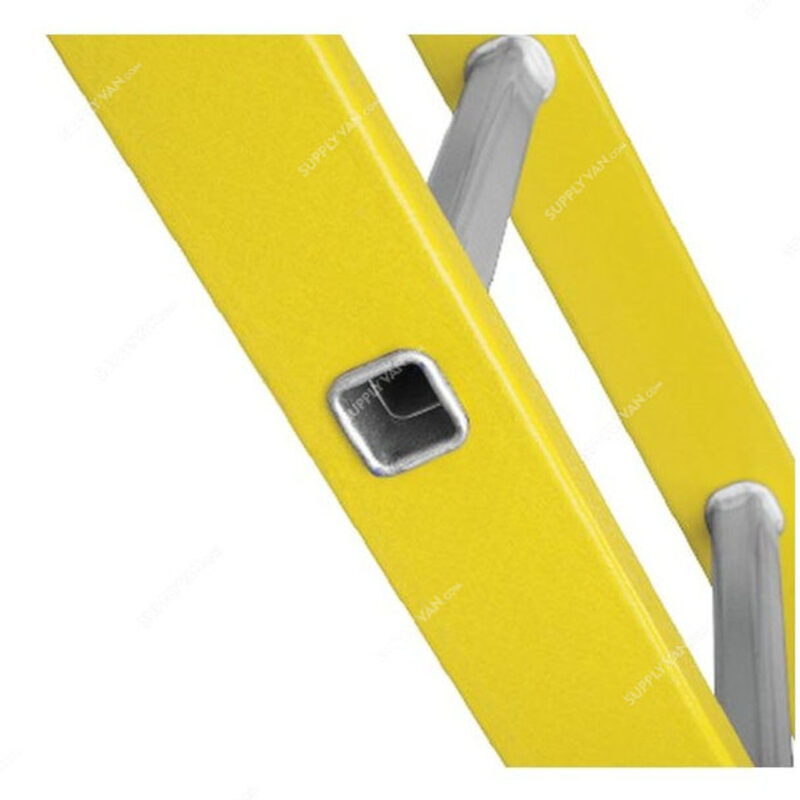

- Rectangle box-type stiles – improved ladder rigidity
- Safe Working Load: 150 kg
Technical Specifications
| Code | Steps | Extended Length (mm) | Closed Length (mm) | Length at 75° (mm) | Width (mm) |
|---|---|---|---|---|---|
| FRPDSL7 | 7+7 | 3440 | 2000 | 3330 | 400 |
| FRPDSL10 | 10+10 | 5440 | 3000 | 5250 | 400 |
| FRPDSL13 | 13+13 | 7440 | 4000 | 7180 | 400 |
| FRPDSL17 | 17+17 | 9440 | 5000 | 9120 | 400 |
| FRPDSL21 | 21+21 | 11440 | 6000 | 11440 | 400 |
Applications
- Electrical & utility installations
- Telecom tower and pole access
- High-voltage maintenance zones
- Industrial & factory maintenance
- Coastal or chemical-prone sites
