Description

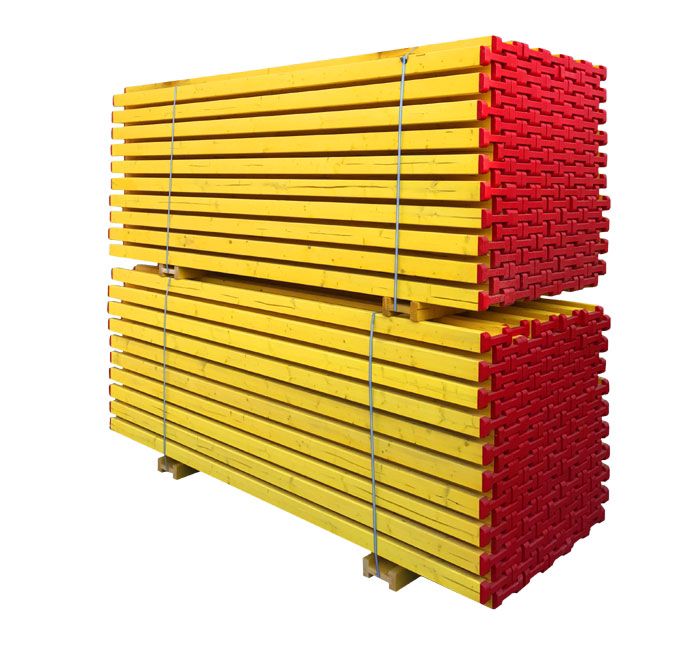

H20 Timber Beam – High-Performance Formwork Solution for Concrete Construction
The H20 Timber Beam is a vital element in modern formwork systems, offering exceptional strength and versatility for concrete construction projects. Constructed with high-quality timber flanges and a solid web, this beam ensures optimal performance under heavy loads while remaining easy to handle due to its lightweight nature.
Treated with water-resistant coatings, the H20 Beam withstands harsh environmental conditions, making it suitable for both indoor and outdoor use. Its standardized dimensions allow for seamless integration into various formwork systems, including slab, wall, and column formworks.
Key Features:

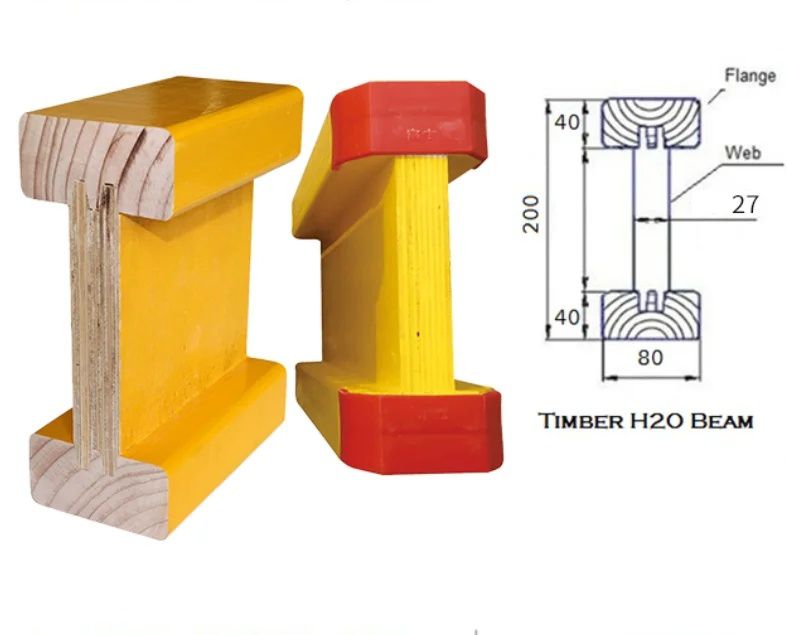

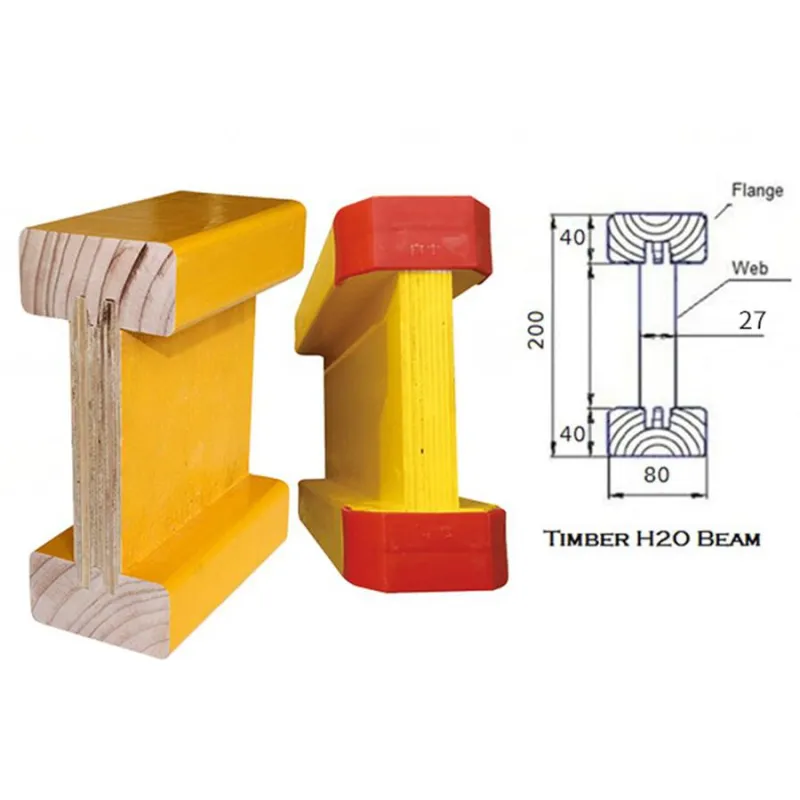

- ✅ Dimensions: Height: 200 mm; Width: 80 mm
- ✅ Length Options: Available in lengths ranging from 1.8 m to 5.9 m
- ✅ Material: High-quality timber with finger-jointed flanges and a solid web
- ✅ Weight: Approximately 4.5 kg/m, facilitating easy handling and transportation
- ✅ Load-Bearing Capacity: Designed to support significant loads with minimal deflection
- ✅ Surface Treatment: Water-resistant and UV-protective coatings for enhanced durability

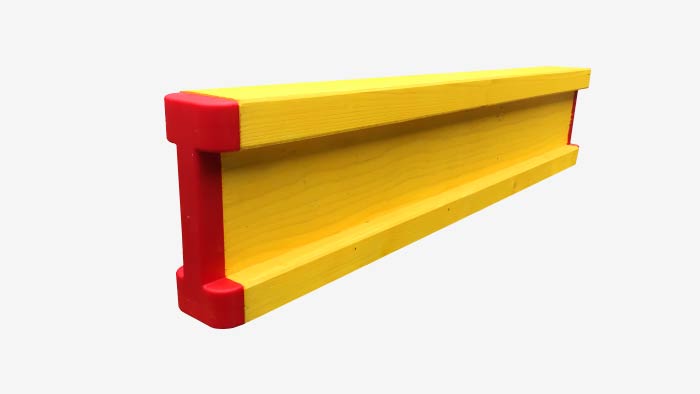

- ✅ End Protection: Plastic or metal caps to safeguard against impact and moisture ingress
- ✅ Compliance: Manufactured in accordance with EN 13377 standards for formwork beams
Applications:
- Slab formwork systems
- Wall and column formwork
- Beam and bridge formwork
- Temporary support structures in construction
